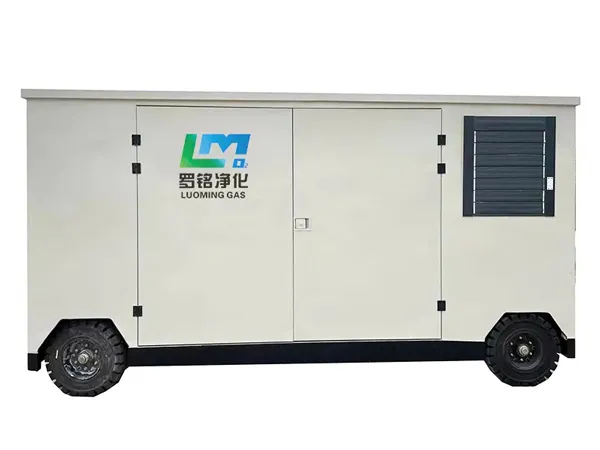

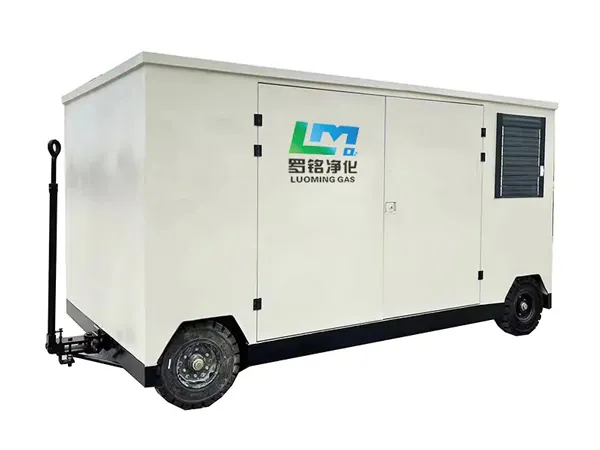

Trailer Type Oxygen Generation System
Trailer Type Oxygen Generation System
The trailer-mounted oxygen generator utilizes Pressure Swing Adsorption (PSA) technology to extract oxygen from ambient air, serving as a fully integrated mobile oxygen production system.
Configure This System
Share your site conditions, oxygen demand, and purity target. Our engineers will prepare a practical configuration and quote.
Product Details
Feed Air Pretreatment
- Ambient air passes through filters to remove dust, moisture, and oil mist, preventing contamination of the molecular sieve.
Pressurized Adsorption
- Clean air is compressed and introduced into adsorption towers filled with molecular sieve. Nitrogen is preferentially adsorbed, while oxygen passes through the adsorption bed as oxygen-enriched gas.
Depressurization and Desorption
- After nitrogen adsorption reaches saturation, the operating tower switches to depressurization. Adsorbed nitrogen is released, restoring adsorption capacity and enabling cyclic operation.
Oxygen Purification and Storage
- Separated oxygen undergoes pressure stabilization and fine filtration, then is stored in an integrated buffer tank to support continuous oxygen supply.
Technical Parameters
| Parameter | Value |
|---|---|
| Oxygen capacity | 1-30Nm³/h (standard conditions) |
| Oxygen purity | 93%±2% (per Chinese National Standard) |
| Outlet pressure | 0.1-0.55MPa (gauge, adjustable) |
| Oxygen dew point | ≤-40°C (at atmospheric pressure) |
